Simple Deployment
Optimal Performance

Top Choices for Enabling Industrial Connectivity

With more than 35 years of industrial network connectivity expertise, Moxa provides a wide-range, industry-proven networking product portfolio to fulfill every hardcore demand from customers. Moxa’s one-stop solution allows your business to enhance connectivity needs between legacy and modern IT and OT systems to optimize data collection and collaboration from the field to the cloud, even in harsh operating environments. Our solution is easy to use, reliable, and provides long-term support, saving your resources to empower your growing business.

Moxa’s Industrial Communications All-Stars

Products Designed for Quick and Simple Deployment

Whether you are just getting started, looking for a specific product, or not very tech-savvy, Moxa’s one-stop product portfolio is committed to delivering top-notch technical support and excellent product performance that you can deploy effortlessly and affordably.

  • Industrial Unmanaged Switches
  • General Device Servers
  • USB-to-Serial Converters/Hubs
  • Modbus RTU/TCP Gateways
  • Universal Remote I/O

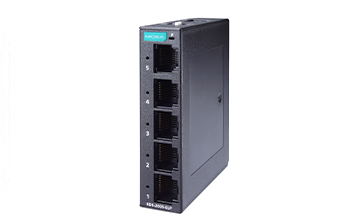

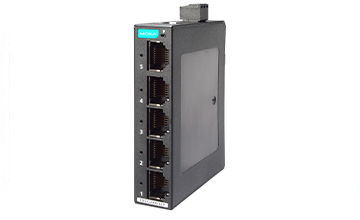

The Most Reliable Industrial Unmanaged Switch is Here

As industries become more resilient, network infrastructure becomes increasingly complex. Network devices, including industrial unmanaged switches, must remain reliable in this dynamic networking environment.

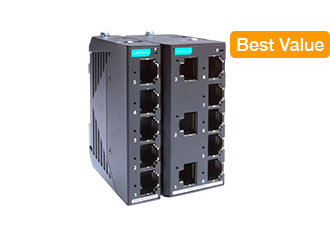

The EDS-2000/G2000-EL(P) Series is designed to help extend the life of your system network by combining plug-and-play functionality with install-and-forget durability. Its extra-small footprint is perfect for space-constrained environments, such as control cabinets and onboard machines. These unmanaged switches include Fast Ethernet and Gigabit options to meet network requirements.

  • Multiple Choices for Easy Deployment
    • Fast Ethernet (10/100) or GbE (10/100/1000) models available for different Internet bandwidth needs
    • 5-Port, 8-Port, and Fiber models available for multiple Ethernet interfaces
  • New Design for Operation Durability
    • Higher EMC/EMI resistance to ensure durability in hazardous environments
    • Higher MTBF (up to 23%)* to ensure operation reliability

    *Compared with our previous EDS-200 Series

  • Extra-Small Footprint for Tiny Control Cabinet
    • Ideal for limited-space environments, simplifies machine installation, and offers future flexibility
    • Smaller devices optimize the airflow in the cabinet, reducing the risk of thermal damage and increasing equipment reliability

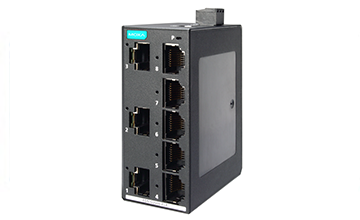

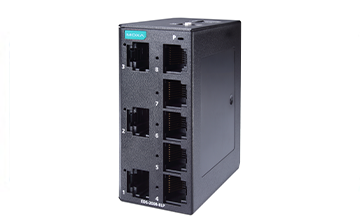

EDS-2000/G2000-EL(P) Series Selection Guide



Moxa Solutions
Port Combination
Fiber Ports
Housing
Operating Temperature
Power Input
DIP Switch Function
Certifications
Full Gigabit
Fast Ethernet
EDS-G2005-EL(-T)/ELP
EDS-G2008-EL(-T)/ELP
EDS-2005-EL(-T)/ELP
EDS-2008-EL(-T)/ELP

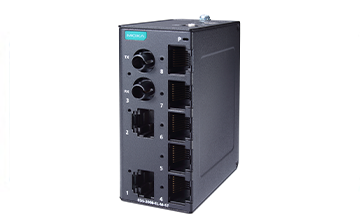

EDS-2008-EL-M-ST(-T)
EDS-2008-EL-M-SC(-T)
5*GbE 8*GbE 5*FE 8*FE 8*FE 8*FE
- - - - 1 1
Metal (EL models) / Plastic (ELP models, no wide temperature model option)
-10° to 60°C / -40° to 75°C (-T models)
Single 12/24/48 VDC input
QoS, BSP
EMC: EN 55032/24
Safety: UL 61010-2-20, IEC 62368-1
EMI: FCC Part 15 Subpart B Class A, EN 55032 Class A

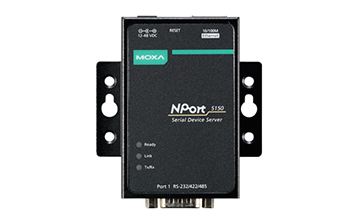

Retrofit Your Legacy System

Serial communication remains a reliable choice for factory applications. The NPort 5100A device servers are designed to quickly make serial devices network-ready, providing direct access to serial devices from anywhere on the network. The NPort 5100A device servers are ultrathin, rugged, and user-friendly, facilitating straightforward and reliable serial-to-Ethernet solutions.

  • 3-Step Web-based Configuration

    To complete serial-to-Ethernet setting and application in 30 seconds

  • Easy Troubleshooting and Diagnosis

    Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered

  • Reliable Protection

    Surge protection for serial, Ethernet, and power compliance with IEC 61000-4-5

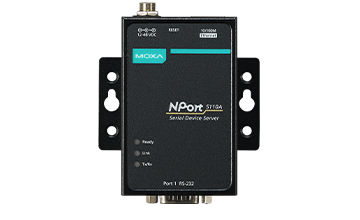

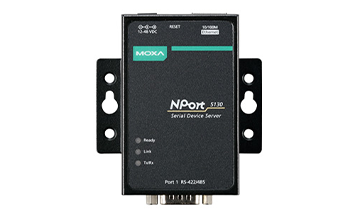

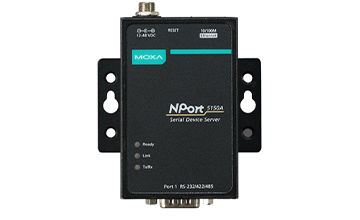

NPort 5100/5100A Series Selection Guide



Moxa Solutions
Operating Temp.
Baudrate
Serial Standards
No. of Serial Ports
Input Current
Input Votage
Housing
Warranty
NPort 5110A
NPort 5130A
NPort 5150A
NPort 5110
NPort 5130
NPort 5150
0 to 60°C (32 to 140°F) 0 to 55°C (32 to 131°F)
50 bps to 921.6 kbps
RS-232 RS-422/485 RS-232/422/485 RS-232 RS-422/485 RS-232/422/485
1
82.5 mA @ 12 VDC 89.1 mA @ 12 VDC 92.4 mA @ 12 VDC 128.7 mA @ 12 VDC 200 mA @ 12 VDC 200 mA @ 12 VDC
12-48 VDC
Metal
5 Years

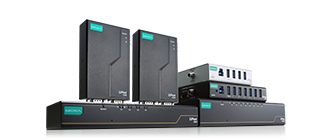

Your Reliable and Flexible Choice for USB-to-Serial Conversion

The UPort USB-to-serial converters are ideal for laptop or workstation computers requiring serial port expansion. They are essential for computers that need to connect different serial devices in the field or require separate interface converters for devices without a standard COM port or DB9 connector. The computers also have a USB cable with a latch and screw lock, ensuring a more secure connection between the UPort and your computer. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

  • Reliable

    Withstands harsh environments with a wide temperature range (-40°C–75°C) and isolation (2 kV) options

  • Flexible

    Say goodbye to limitations. Connect whatever you like, cascading up to 32 serial ports

  • Sustainable

    Get 100% sustainability with 20% less power consumption

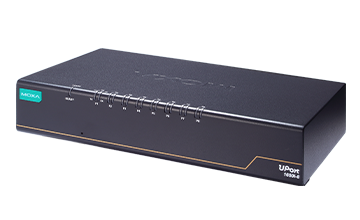

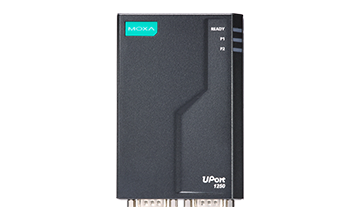

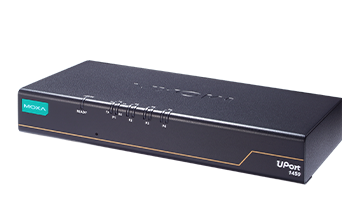

UPort 1000-G2 Series Selection Guide



Moxa Solutions
USB Standards
Speed
Serial Standards
USB Connector
No. of USB Ports
No. of Serial Ports
Isolation
Power Input Voltage
Baudrate
Operating Temp.
Housing
Warranty
UPort 1250-G2
UPort 1250I-G2
UPort 1250-G2-T
UPort 1450I-G2
Port 1410-G2
UPort 1610-8-G2
UPort 1650-8-G2

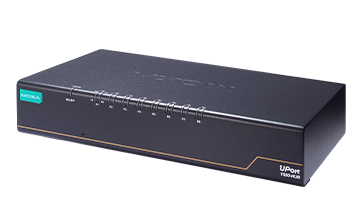

UPort 1650-8-G2-Hub
USB 3.2 Gen 1
USB 1.1/2.0 compliant
5 Gbps, 480 Mbps, 12 Mbps
RS-232/422/485 RS-232/422/485 RS-232/422/485 RS-232/422/485 RS-232 RS-232 RS-232/422/485 RS-232/422/485
USB Type B
1
2 2 2 4 4 8 8 8
- 2 kV - 2 kV - - - -
VDC by USB bus power VDC by USB bus power VDC by USB bus power VDC by USB bus power or 12 to 48 VDC by external power adaptor VDC by USB bus power or 12 to 48 VDC by external power adaptor VDC by USB bus power or 12 to 48 VDC by external power adaptor VDC by USB bus power or 12 to 48 VDC by external power adaptor VDC by USB bus power or 12 to 48 VDC by external power adaptor
50 bps to 921.6 kbps
0 to 60°C 0 to 60°C -40 to 75°C 0 to 60°C 0 to 60°C 0 to 60°C 0 to 60°C 0 to 60°C
Metal
5 Years

Enhance Your Data Communication Efficiency

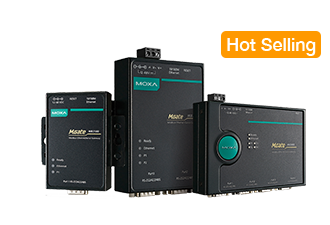

The MGate MB3000 Series is a line of Modbus protocol gateways that provides users with seamless integration of Ethernet and serial Modbus devices. Meanwhile, it provides powerful operation modes to handle almost any Modbus application. Through Windows utilities, users can benefit from easy setup, traffic monitoring, and troubleshooting.

  • Seamless Integration
    •  Seamless integration between Modbus serial and TCP networks.
    • Widely adopted in industrial devices like PLCs, DCSs, HMIs, and meters.
    • Supports RS-232/422/485 devices.
  • Powerful Operation
    • Windows utility streamlines configuration and operation.
    • Automatically connects to LAN units for added convenience.
    • Web console for configuration, traffic monitoring and troubleshoot Modbus communication issues.
  • Easy Configuration
    • Auto-Device Routing simplifies Modbus setup.
    • Eases management of large Modbus device numbers.
    • One-click setup for slave ID routing and gateway configuration.
    • Eliminates manual slave ID routing, saving time and cost.

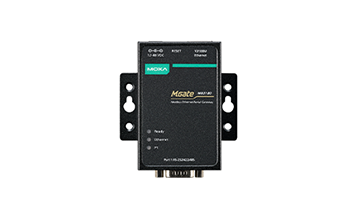

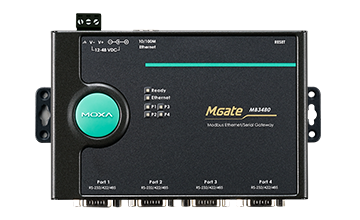

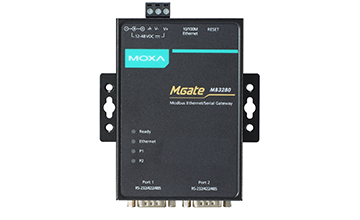

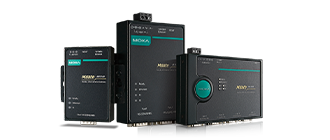

MGate MB3180/3280/3480 Series Selection Guide



Moxa Solutions
Industrial Protocol
No. of Serial Ports
Serial Standards
Baudrate
Input Voltage
Input Current
Operating Temp.
Housing
Max. No.of Client Connections
Max. No.of Server Connections
Warranty
Gate MB3180
MGate MB3280
MGate MB3480
Modbus TCP Client (Master)
Modbus TCP Server (Slave)
Modbus RTU/ASCII Master
Modbus RTU/ASCII Slave
1 2 4
RS-232/422/485 RS-232/422/485 RS-232/422/485
50 bps to 921.6 kbps
12-48 VDC
200 mA @ 12 VDC 250 mA @ 12 VDC 365 mA @ 12 VDC
0 to 55°C 0 to 60°C 0 to 55°C
Metal
16
32
5 Years

Simplified Edge Connectivity for Digital Evolution

Moxa provides diverse controllers and I/O products for industrial automation applications in factories, energy, transportation, and city infrastructure. Our best-selling ioLogik E1200 series is the perfect IT/OT convergence choice, offering effortless deployment and scalability to meet evolving needs.

  • Multiple OT/IT Protocol Support

    Supports various IT protocols and the Modbus TCP protocol for easier deployment in different applications

  • Easy Expansion with Daisy-chained topologies

    2-port Ethernet switch for daisy-chain topologies, reducing overall labor and cabling expenses for scalable deployment

  • Industrial Reliability

    Rugged hardware designed for long-term operation and highly reliable to work even in harsh environments

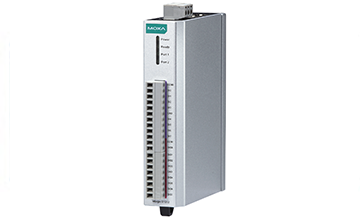

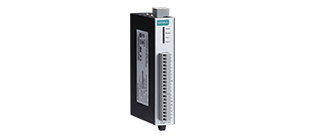

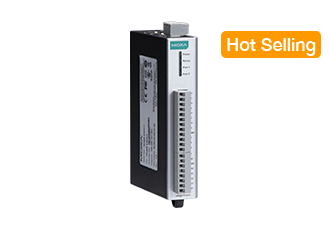

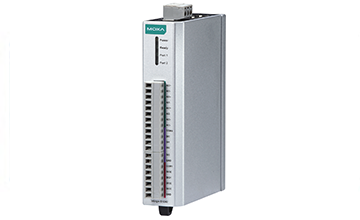

ioLogik E1200 Series Selection Guide



Moxa Solutions
Digital Inputs
Digital Outputs
Relays
Configurable DIOs
Analog Inputs
Analog Outputs
RTDs
Thermocouples
E1210 (-T)
E1211 (-T)
E1212 (-T)
E1213 (-T)
E1214 (-T)
E1240 (-T)
E1241 (-T)
E1242 (-T)
E1260 (-T)
E1262 (-T)
16 - 8 8 6 - - 4 - -
- 16 - 4 - - - - - -
- - - - 6 - - - - -
- - 8 4 - - - 4 - -
- - - - - 8 - 4 - -
- - - - - - 4 - - -
- - - - - - - - 6 -
- - - - - - - - - 8


Operating temperature:
Standard model: -10°C–60°C (14°F–140°F); Wide-range model (-T): -40°C–75°C (-40°F–167°F)

Industrial Applications Deployed with Moxa’s One-Stop Solution

Discover How Our Products Have Driven Notable Successes in Diverse Industries

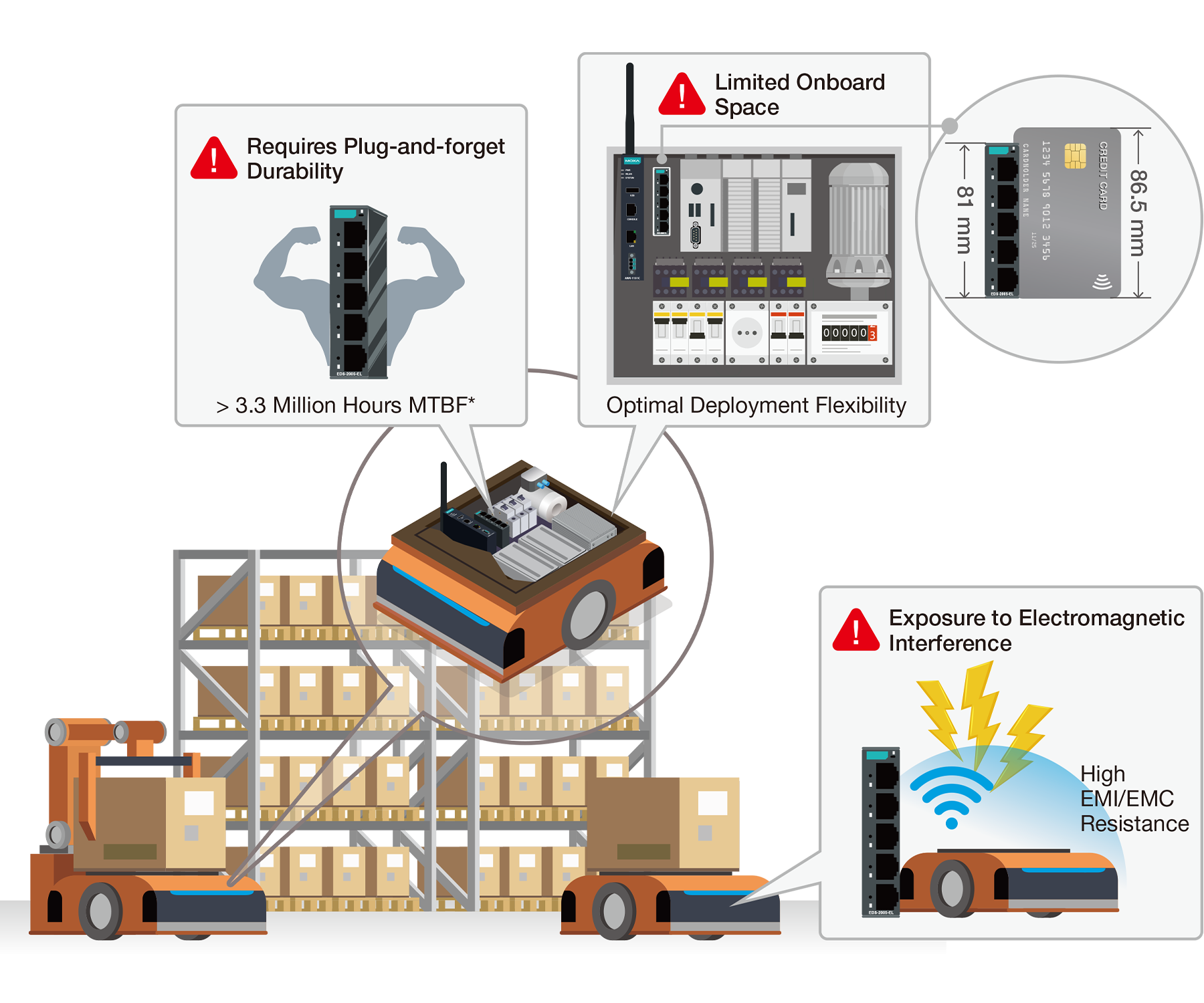

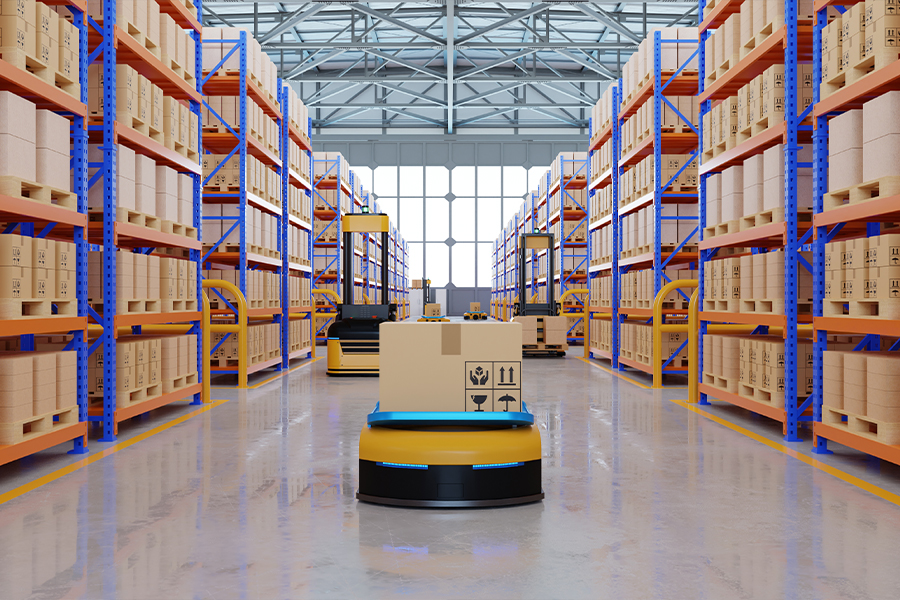

Optimal Deployment Flexibility and Durability in Space Constraints Automated Guided Vehicles (AGVs)

Requirements
Flexibility in Deployment
  • Space constraints inside AGVs.
Reliability in System Operation
  • Exposure to various harsh environments.
  • Any interruption can stop the whole operation.

Why Moxa?

  • Compact size that simplifies machine installation and offers flexibility for future use.
  • Robust metal housing provides uncompromised quality.
  • High-level EMI/EMC resistance to ensure suitability for use in hazardous environments.
  • Rugged design with outstanding MTBF, ensuring continuous operation.

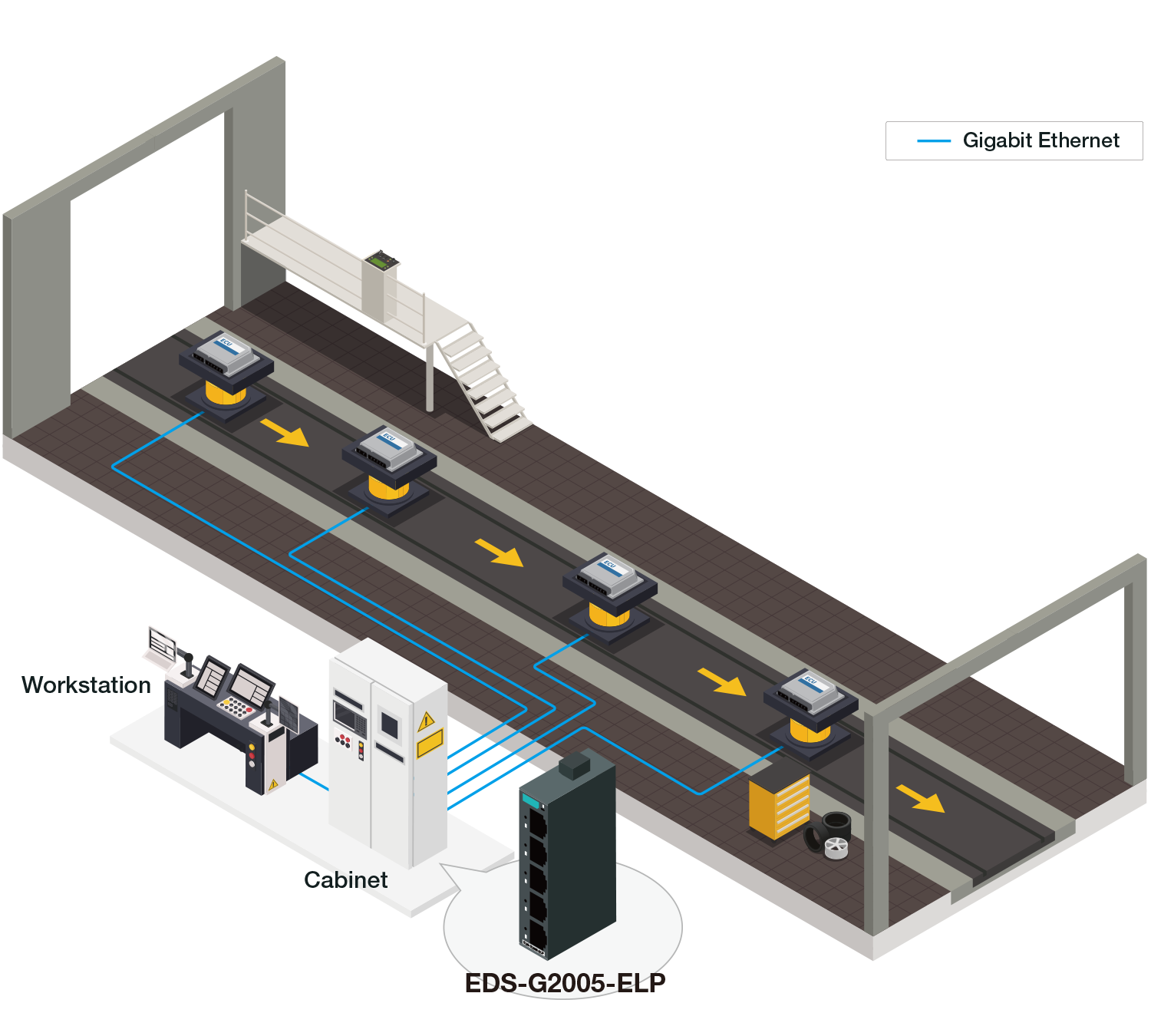

The Robust Tiny Unmanaged Switch Designed for Production Line

*Due to the increased computing complexity of electric vehicles compared to traditional ones, the size of the electronic control unit (ECU) program packages has increased significantly.

Requirements
Network Requirements
  • High-bandwidth connections are necessary to ensure reliable and efficient transmission of large ECU packages.*
Reliability in System Operation
  • Optimizing the reliability of test station components is key to creating stable solutions.
Product Designed for Worldwide Market
  • As a world-wide solutions provider, full compliance with international product and safety standards is mandatory to support global operations.

Why Moxa?

  • Gigabit Ethernet connectivity to achieve seamless transmission of high-bandwidth ECU data.
  • Rugged designs provide robust durability and stable performance.
  • Certified to international standards for matching local requirements

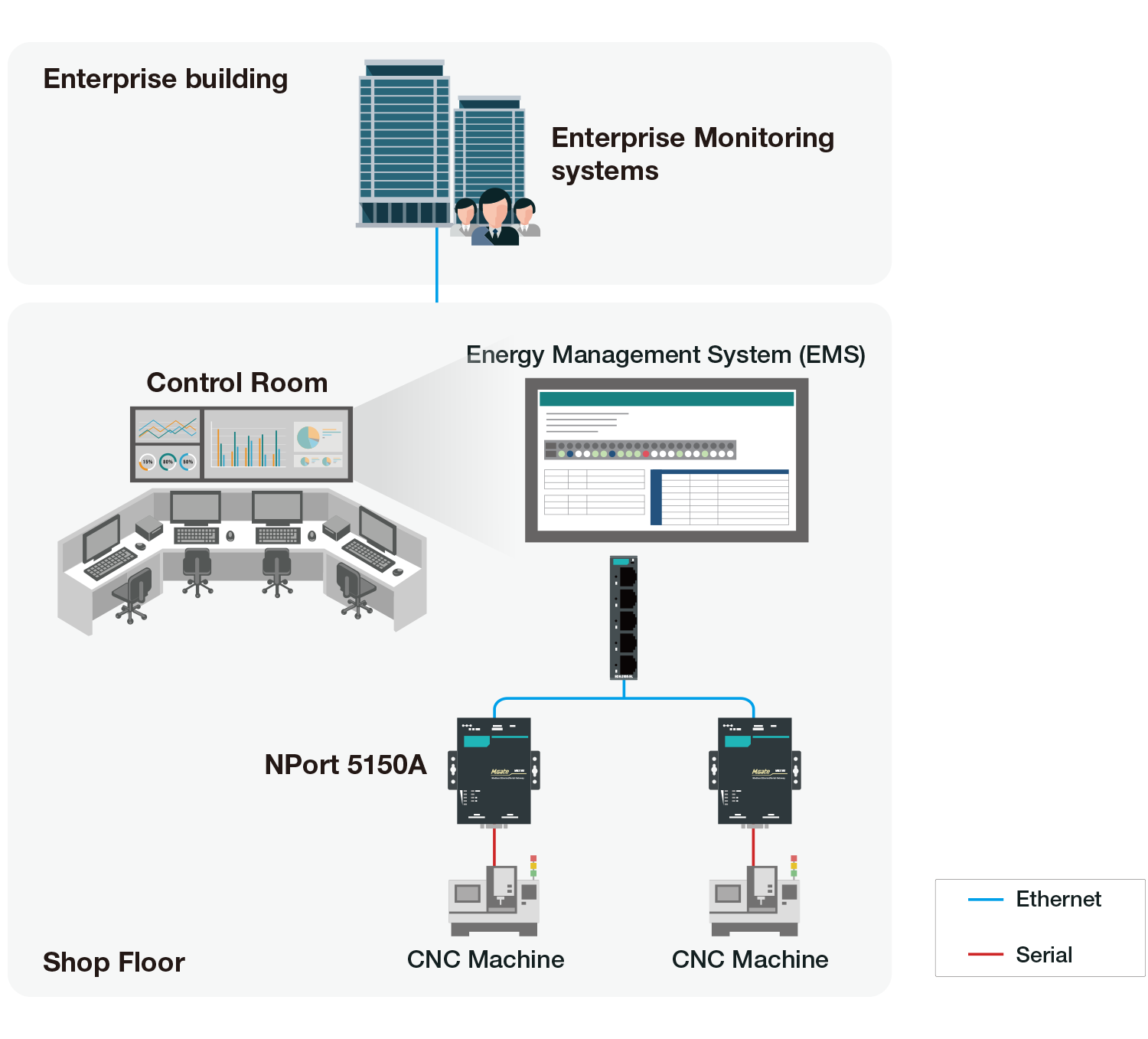

Enhance Manufacturing Efficiency with CNC Monitoring

Requirements

  • Live dashboard with alerts based on historical and target performance metrics.
  • Easy to use with existing CNC machines that may not have a built-in Ethernet interface.
  • Does not have sufficient investment or expertise in specialized IT infrastructure, servers, or software.

Why Moxa?

  • Compact size for easy installation.
  • Standard TCP/IP interface and versatile operation modes.
  • Easy configuration by web console or Windows utility.

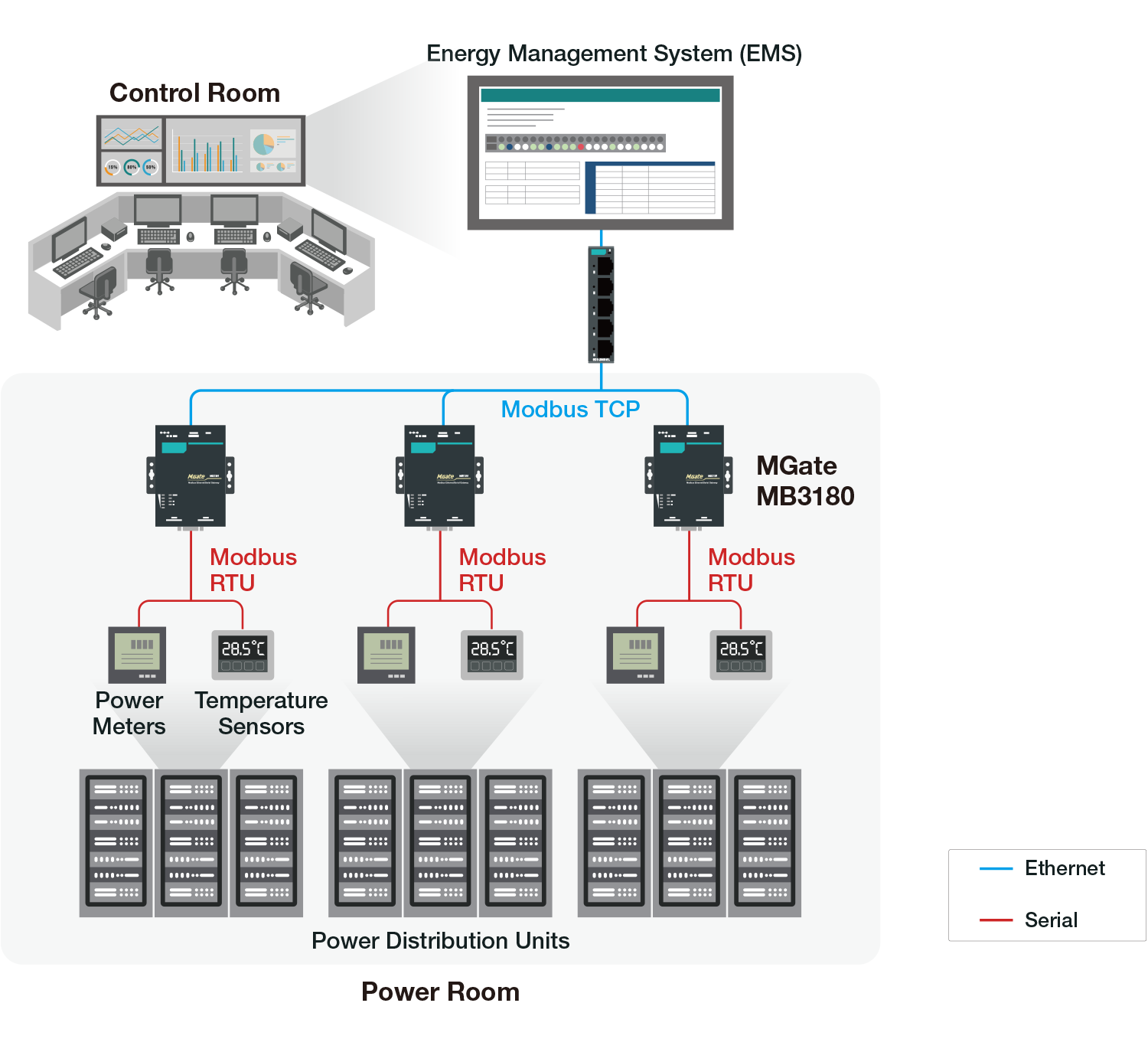

Streamline Power System Monitoring Effortlessly

Requirements

  • Smooth data communication from PDUs to the EMS.
  • Efficient configuration tools for fast deployment in large-scale applications.
  • Various serial port devices throughout the data center infrastructure.

Why Moxa?

  • RTU-to-Modbus TCP conversions.
  • Command-line tools to make mass configuration easy for IT engineers.
  • Easy hardware setup and configuration.

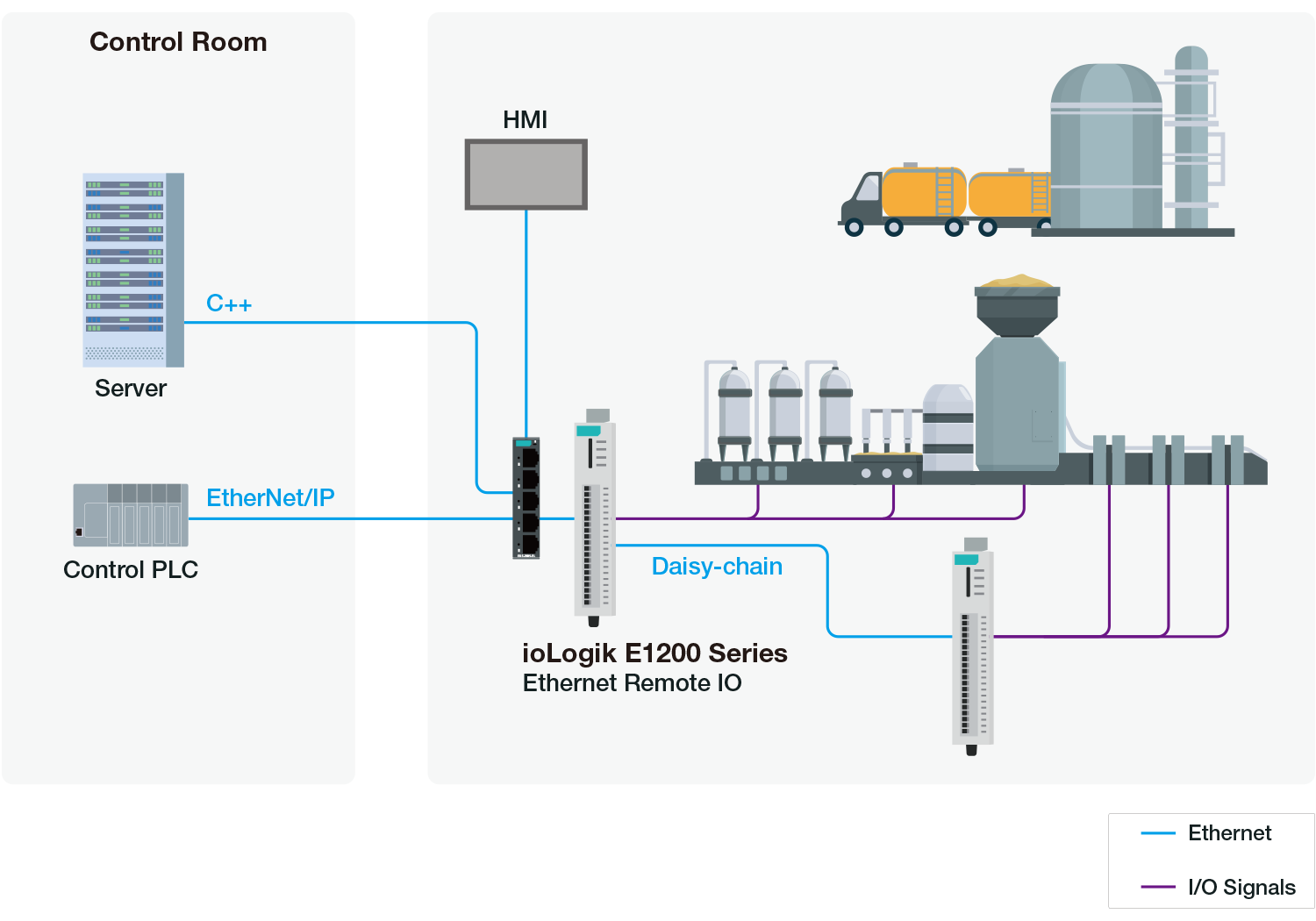

PLC Signal Extension in Pulp Mill Factory

Requirements

  • The control room and sensors are far remote, making wiring over long distances a challenge.
  • When different brands of PLCs need to be implemented, more I/O models are needed to support different protocols.

Why Moxa?

  • Using peer-to-peer communication to reduce cabling and wiring costs.
  • Dual Ethernet ports for easy I/O cascading and expansion.
  • Support multiple OT protocols for different brands of PLC.

Condition Monitoring System in Data Center

Requirements

  • Large-scale deployment that requires simple installation.
  • IT-based management system to monitor the data center environment; however, IT people are not familiar with OT protocol details, so several gateways need to be implemented.

Why Moxa?

  • Built-in 2-port switch for daisy-chain network topology to save on the cost of switches.
  • Friendly IT protocol support can be easily integrated into a network management system:
    • RESTful API
    • SNMP
    • Moxa Library (C++)

Empowering Your Business Through Best-in-Class Products

As industries continue to evolve and become more resilient, designing robust and reliable industrial network products for a variety of applications requires more R&D innovation, product design, and long-term support. Product quality reflects the design-thinking process, which guarantees the longevity of every detail. Moxa continues to invest in reliability engineering to support our existing and future customers as we value product quality more.

  • Simplicity

    Plug-and-play without requiring technical expertise or support

  • Reliability

    Pioneering reliability engineering technologies for customers concerned with quality and longevity

  • Performance

    High capacity, durability, and security in a product with a compact form factor

  • Support

    Technical support teams and global distribution networks for application consulting and troubleshooting, along with support services for long-term driver and OS updates
