Made to Last,
Made for You
A New Generation of
x86 Industrial Computers
Your Trusted Computing Partners
For Industrial Automation

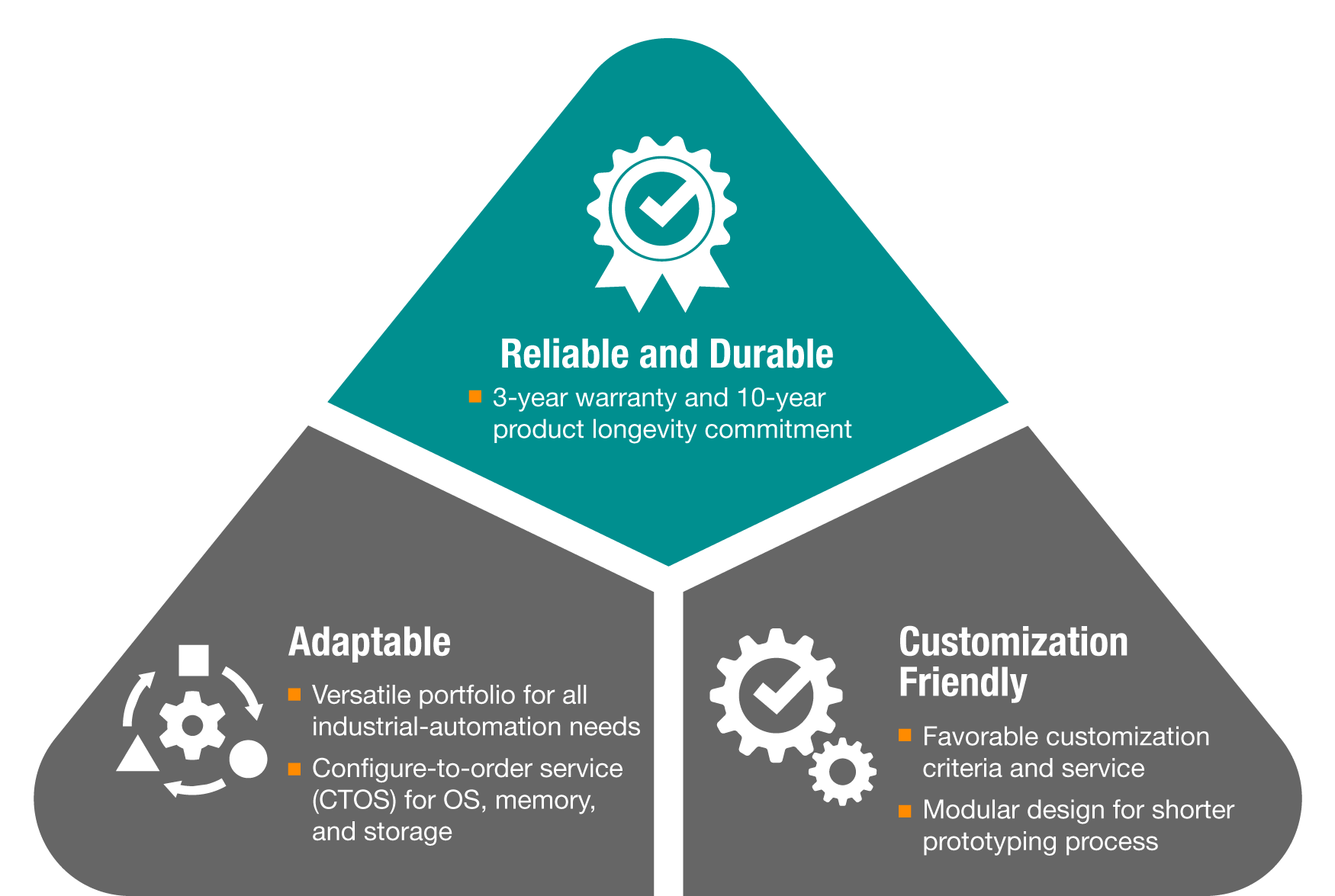

Moxa introduces a new generation of BXP, DRP, and RKP series industrial computers that are specifically designed to facilitate rapid system development with reliable, adaptable, and cost-effective computing solutions. The industrial computers are based on a pre-formulated configure-to-order architecture, making it easy to meet various system development and integration requirements. Their wide-temperature design, coupled with fanless operation, ensures stable performance even in harsh environments. Furthermore, a 3-year warranty and 10-year product longevity underscores our commitment to product quality.
Key Features

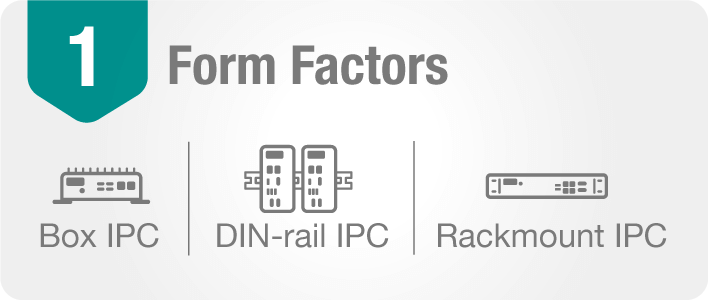

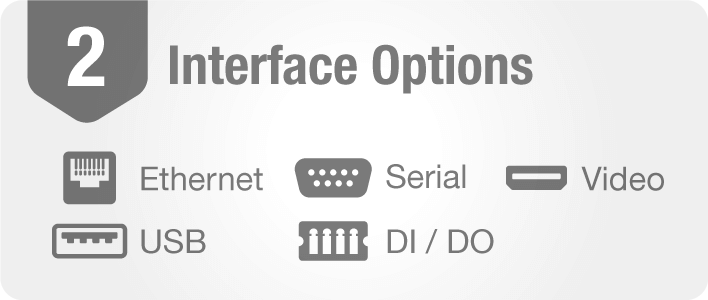

4 Simple Steps to Your Best-fit Solution
* Images and drivers for Windows 10 IoT Enterprise LTSC 2021 (64-bit) and Windows 11 Professional 2022 (64-bit)
** Only support drivers for Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.15) and RHEL 9 (kernel 5.14)
Achieve Reliable Data Connectivity for Diverse
Industrial Automation Applications
-
Factory Automation
Equipping RMS With M2M Gateways for Higher PCB Yields
To eliminate data silos across their manufacturing processes, a PCB manufacturer asked their solution provider to develop a gateway-based solution with a Recipe Management System (RMS) as a centralized data library to improve the PCB production through real-time data collection and analysis.
-
Retail Automation
Reliable POS Systems for Gas Stations
POS systems are critical for gas stations to maintain continuous operations. A state-owned gas-station operator wanted to retrofit their POS systems to enable seamless operations and reduce the time required for troubleshooting issues.
-
Transportation Automation
Automated Fare-collection Systems for Metro Transit Systems
Banking on their long-term partnership with Moxa, a metro rail company in Asia contacted Moxa for computing solutions to retrofit their automated fare collection (AFC) system for improving system flexibility and reliability at busy metro stations.
Download Product Brochure
Find out more by downloading our new x86 industrial computers brochure and learn how you can choose a best fit for your industrial applications from 75 industry-optimized models.
BXP, DRP, and RKP Portfolio of Industrial Computers
| Form Factor |
|---|
| Series |
| CPU |
| Video Output |
| LAN Ports |
| Serial Ports |
| USB Ports |
| DI/Os |
| Memory Options |
| Storage Options |
| OS Options |

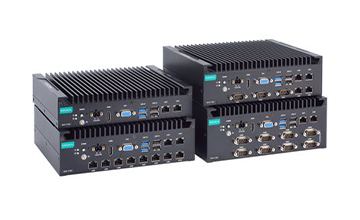

Box Computers
|

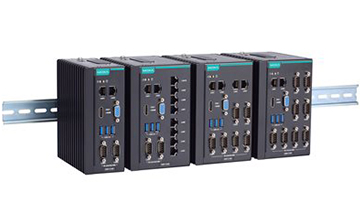

DIN-rail Computers
|
Rackmount Computers
|
|||
|---|---|---|---|---|---|
| BXP-C100 Series | BXP-A100 Series | DRP-C100 Series | DRP-A100 Series | RKP-C110 Series | RKP-A110 Series |
| 11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
11th Gen Intel® Core™ - i7-1185G7E - i5-1145G7E Intel® Celeron® 6305E |
Intel Atom® Quad-core x6425E Dual-core x6211E |
| 1 HDMI, 1 VGA | |||||
| Up to 10 | Up to 10 | Up to 12 | |||
| Up to 10 | Up to 8 | Up to 10 | |||
| 6 (2 USB 3.0, 4 USB 2.0) | 3 USB 3.0 | 3 USB 3.0 | |||
| 4 DIs, 4 DOs | - | 8 DIs, 8 DOs | |||
| 8 GB (pre-installed), 16 GB, up to 32 GB DDR4 | |||||
| CFast: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB | 2.5”SSD: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB | ||||
| Windows 10 IoT Enterprise LTSC 2021 (64-bit) Windows 11 Professional 2022 (64-bit) |
|||||
